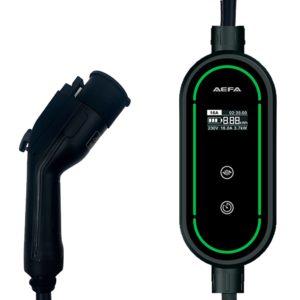

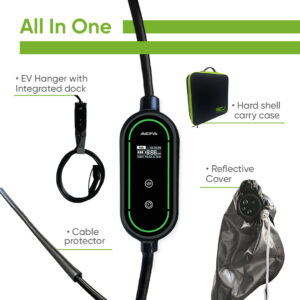

ENDURAeV Charger (B)

$339.00$414.00

EV Charger 24 Amp, 5.8kW

3 Pin Plugs NEMA 5-15 Socket (120V), NEMA 6-30, NEMA 6-20 (240V)

4 pin Plugs

Rating

Rated Currents

NEMA 14-50, NEMA 6-50, NEMA 14-30, NEMA L14-40 (240V)

Indoor/Outdoor rated for installation anywhere

12, 16, 20, 24, 32 and 40 amp

Weight 14 pounds

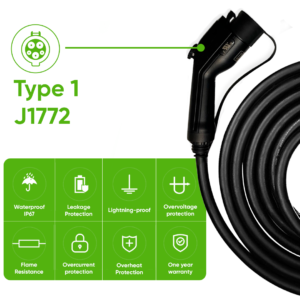

Connector Type Type 1 (SAE J1772) lockable. Fits all cars including Tesla with Tesla supplied adapter
Control Box Dimensions 2 inches deep x 3.5 inches wide x 8 inches long
Cable Length Convenient 25 feet or 32 feet (total charging length from wall socket 26 feet and 34 feet)
Protection IP67 (international standard EN 60529)

Assembly

Temperature

None

22 degrees Fahrenheit to 140 degrees Fahrenheit

Warranty 12 months
Input voltage 208-240 Volts alternating current (AC), single phase
Approvals CE, CB & TUV Approved
Material Premium TPU with thin and lightweight cable
Compatibility Suitable for all U.S. and Canadian EVs (SAE J1772 inlet)
Integrated DC Leakage Protection Type B residual current detection
Surge Protection

Over/under voltage, overload protection, short circuit protection, leakage current protection, over

temperature protection, lightning protection, active ground detection

Ground Monitoring Yes
Residual Current Detection

Alternating current 30 milliamps (mA), Direct Current 6 milliamps (mA)

*Requirements of GB 14048.2 – 2008, GB 16916.1-2014 and GB 22794-2008

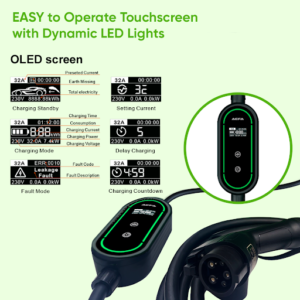

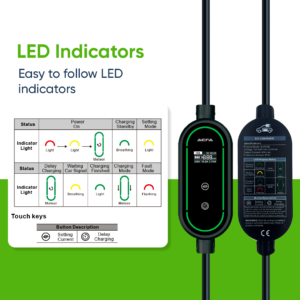

Features LED indicator lights to manage charging errors
Amerage Charge Speeds
12amp 1.4 kW
16amp 3.8 kW
20amp 4.8 kW
24amp 5.8 kW
32amp 7.4 kW
40amp 9.6 kW
