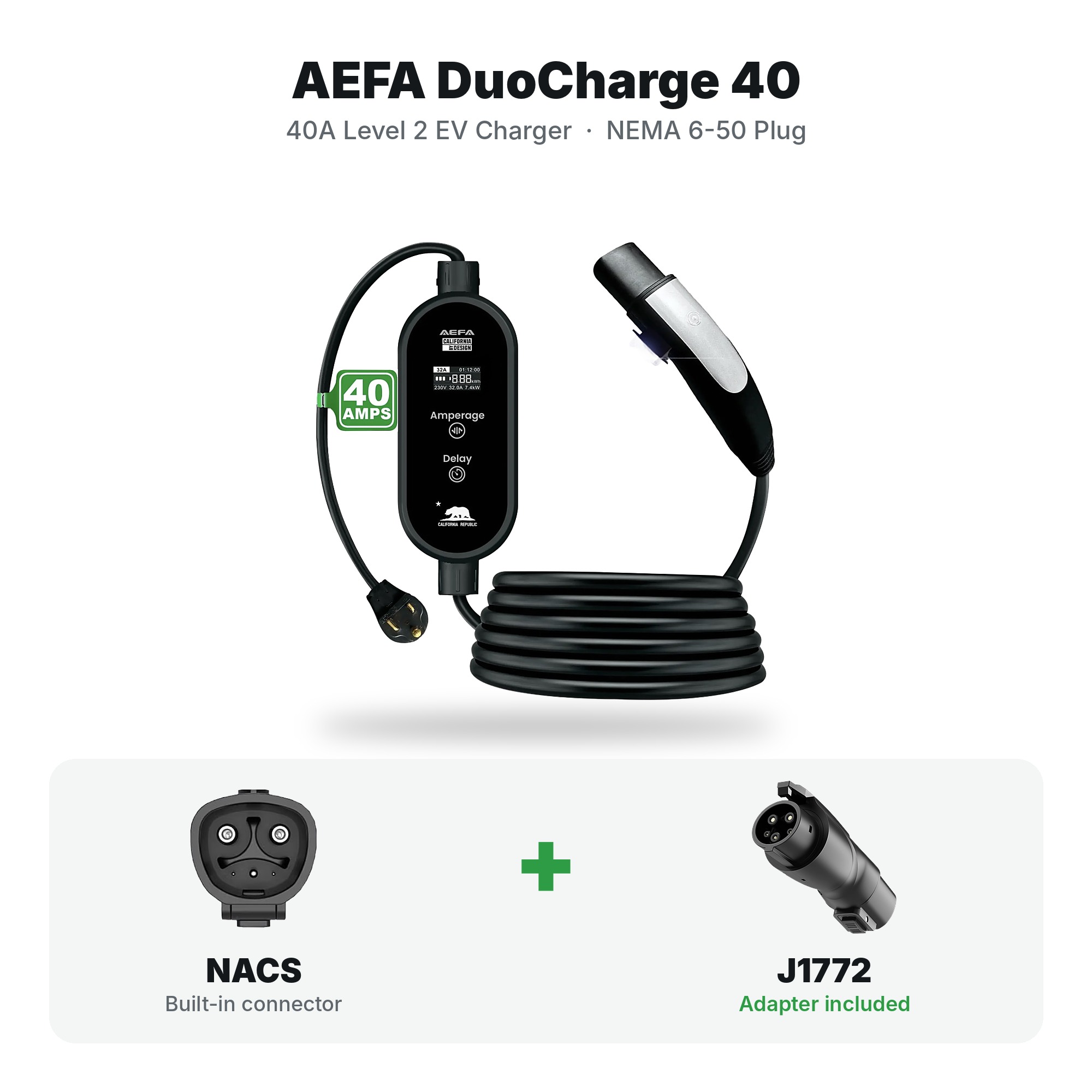

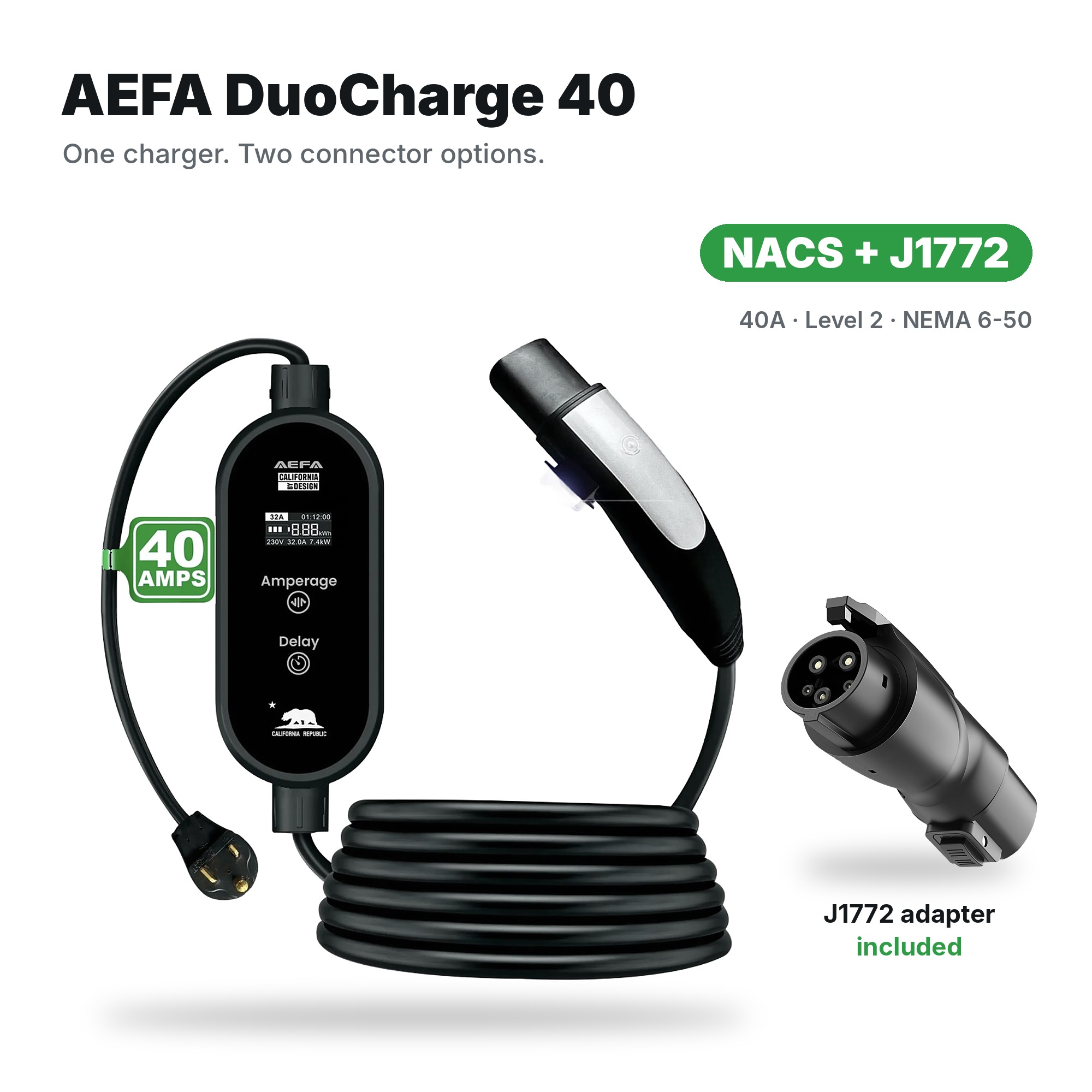

NEMA 6-50 – 40A NACS Adjustable EV Charger

Original price was: $369.Current price is: $279.

Do you need a faster charge for your car? Try our NEMA 6-50 Level 2 EV chargers, a high power charging solution for your home or on the go, free shipping included!
This product is out of stock.
Alert me when in stock
Pick the power level and EV plug type to suit your car. Highest power EV charging for each plug type with delay charging feature until off-peak hours. 100% vehicle compatibility in a complete EV charging solution of EV charger, hanger, cable protector, charging cover, and carry case.
  • High Power: Level 2, 240 volt charging
  • FlexBox™: Smallest footprint EV charger
  • Flexible: Mobile, portable, or mountable wallbox
  • Easy to use: Ready to charge. No programming
  • Charge Status: Oversized oval green charge light
  • Touchscreen: Easy-to-read, digital indicators
  • HD: LCD screen and LED control box lights
  • Delayed charging: Charge at night during off-peak hours
  • Extended length: No cable stretching, driveway parking
  • Ready to use: No installation needed – Plug-in, no hardwiring
  • All-in-one: Charger, hanger, cable protector, and charger cover

Description

Pick the power level and EV plug type to suit your car. Highest power EV charging for each plug type with delay charging feature until off-peak hours. 100% vehicle compatibility in a complete EV charging solution of EV charger, hanger, cable protector, charging cover, and carry case.

  • High Power: Level 2, 240 volt charging
  • FlexBox™: Smallest footprint EV charger
  • Flexible: Mobile, portable, or mountable wallbox
  • Easy to use: Ready to charge. No programming
  • Charge Status: Oversized oval green charge light
  • Touchscreen: Easy-to-read, digital indicators
  • HD: LCD screen and LED control box lights
  • Delayed charging: Charge at night during off-peak hours
  • Extended length: No cable stretching, driveway parking
  • Ready to use: No installation needed – Plug-in, no hardwiring
  • All-in-one: Charger, hanger, cable protector, and charger cover

Additional information

Choose your Plug Type

NEMA 6-50 Socket
Select Length

25FT, 32FT

EV Cable Specifications

3 Pin Plugs NEMA 5-15 Socket (120V), NEMA 6-30, NEMA 6-20 (240V)

4 pin Plugs

Rating

Rated Currents

NEMA 14-50, NEMA 6-50, NEMA 14-30, NEMA L14-40 (240V)

Indoor/Outdoor rated for installation anywhere

12, 16, 20, 24, 32 and 40 amp
Weight 14 pounds
Connector Type Type 1 (SAE J1772) lockable. Fits all cars including Tesla with Tesla supplied adapter
Control Box Dimensions 2 inches deep x 3.5 inches wide x 8 inches long
Cable Length Convenient 25 feet or 32 feet (total charging length from wall socket 26 feet and 34 feet)
Protection IP67 (international standard EN 60529)

Assembly

Temperature

None

22 degrees Fahrenheit to 140 degrees Fahrenheit
Warranty 12 months
Input voltage 208-240 Volts alternating current (AC), single phase
Approvals CE, CB & TUV Approved
Material Premium TPU with thin and lightweight cable
Compatibility Suitable for all U.S. and Canadian EVs (SAE J1772 inlet)
Integrated DC Leakage Protection Type B residual current detection
Surge Protection

Over/under voltage, overload protection, short circuit protection, leakage current protection, over

temperature protection, lightning protection, active ground detection
Ground Monitoring Yes
Residual Current Detection

Alternating current 30 milliamps (mA), Direct Current 6 milliamps (mA)

*Requirements of GB 14048.2 – 2008, GB 16916.1-2014 and GB 22794-2008
Features LED indicator lights to manage charging errors

Charging Cable Speeds

Amerage Charge Speeds
12amp 1.4 kW
16amp 3.8 kW
20amp 4.8 kW
24amp 5.8 kW
32amp 7.4 kW
40amp 9.6 kW
