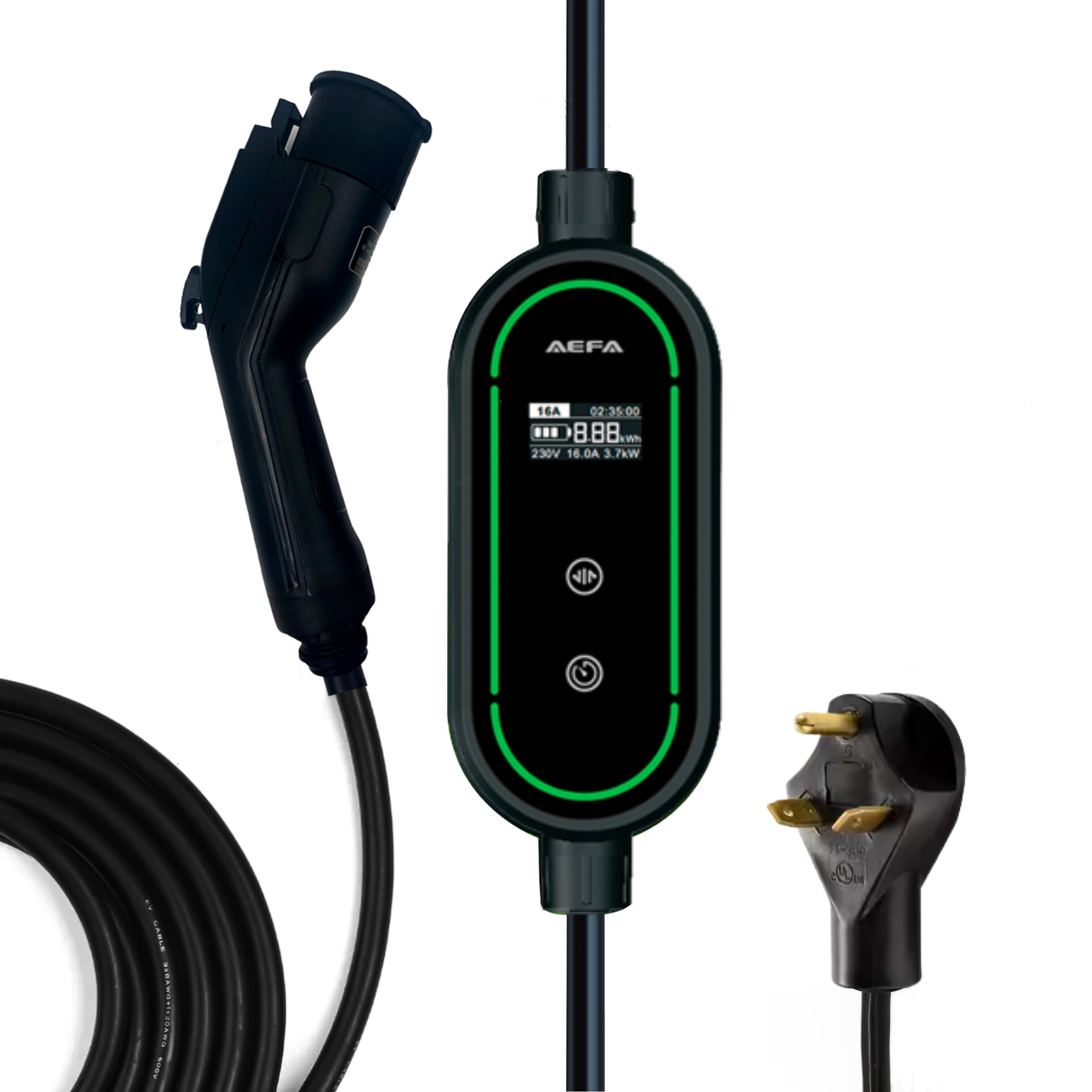

NEMA TT-30 PLUG Level 1 EV Charger


Optimize your electric vehicle charging experience at RV parks, campgrounds, and various outdoor locations using a 30-amp 120-volt service, commonly known as the TT-30 camper outlet. The TT-30 EV charger is exclusively crafted by EV-Chargers, tailored for TT-30 plug type EV charging. This charger is meticulously designed to set the maximum charging rate, ensuring safe and efficient charging while preventing inconvenient breaker trips.
The TT-30 120-volt plug receptacle is a widely used plug type, frequently found in national parks, campgrounds, recreational RV parks, and other outdoor accommodations. By utilizing a dedicated TT-30 plug type, you can avoid the need for adapters and extension cables, enhancing safety as the EV charger maintains its ground detection capability. It is compatible with any 120-volt, 1-pole 30-amp outlet. You have the flexibility to adjust the power settings on the EV charger to 12, 16, or 20 amps, preventing circuit overload and tripping the circuit breaker or wiring. These amp levels align with the preferences of most EVs when operating at 120 volts, as car manufacturers often impose software-based limitations in accordance with the J1772 or Tesla connector standards. Typically, this setup provides a charging rate of 4-8 miles of range per hour for most vehicles
Amerage Charge Speeds
12amp 1.4 kW
16amp 3.8 kW
20amp 4.8 kW
24amp 5.8 kW
32amp 7.4 kW
40amp 9.6 kW
3 Pin Plugs NEMA TT-30 Socket (120V), NEMA 5-15 Socket (120V), NEMA 6-30, NEMA 6-20 (240V)
4 pin Plugs


Rated Currents

NEMA 14-50, NEMA 6-50, NEMA 14-30, NEMA L14-40 (240V)

Indoor/Outdoor rated for installation anywhere

12, 16, 20, 24, 32 and 40 amp

Weight 14 pounds
Connector Type Type 1 (SAE J1772) lockable. Fits all cars including Tesla with Tesla supplied adapter
Control Box Dimensions 2 inches deep x 3.5 inches wide x 8 inches long
Cable Length Convenient 25 feet or 32 feet (total charging length from wall socket 26 feet and 34 feet)
Protection IP67 (international standard EN 60529)



22 degrees Fahrenheit to 140 degrees Fahrenheit

Warranty 12 months
Input voltage 208-240 Volts alternating current (AC), single phase
Approvals CE, CB & TUV Approved
Material Premium TPU with thin and lightweight cable
Compatibility Suitable for all U.S. and Canadian EVs (SAE J1772 inlet)
Integrated DC Leakage Protection Type B residual current detection
Surge Protection Over/under voltage, overload protection, short circuit protection, leakage current protection, over

temperature protection, lightning protection, active ground detection

Ground Monitoring Yes
Residual Current Detection Alternating current 30 milliamps (mA), Direct Current 6 milliamps (mA)

*Requirements of GB 14048.2 – 2008, GB 16916.1-2014 and GB 22794-2008

Features LED indicator lights to manage charging errors
